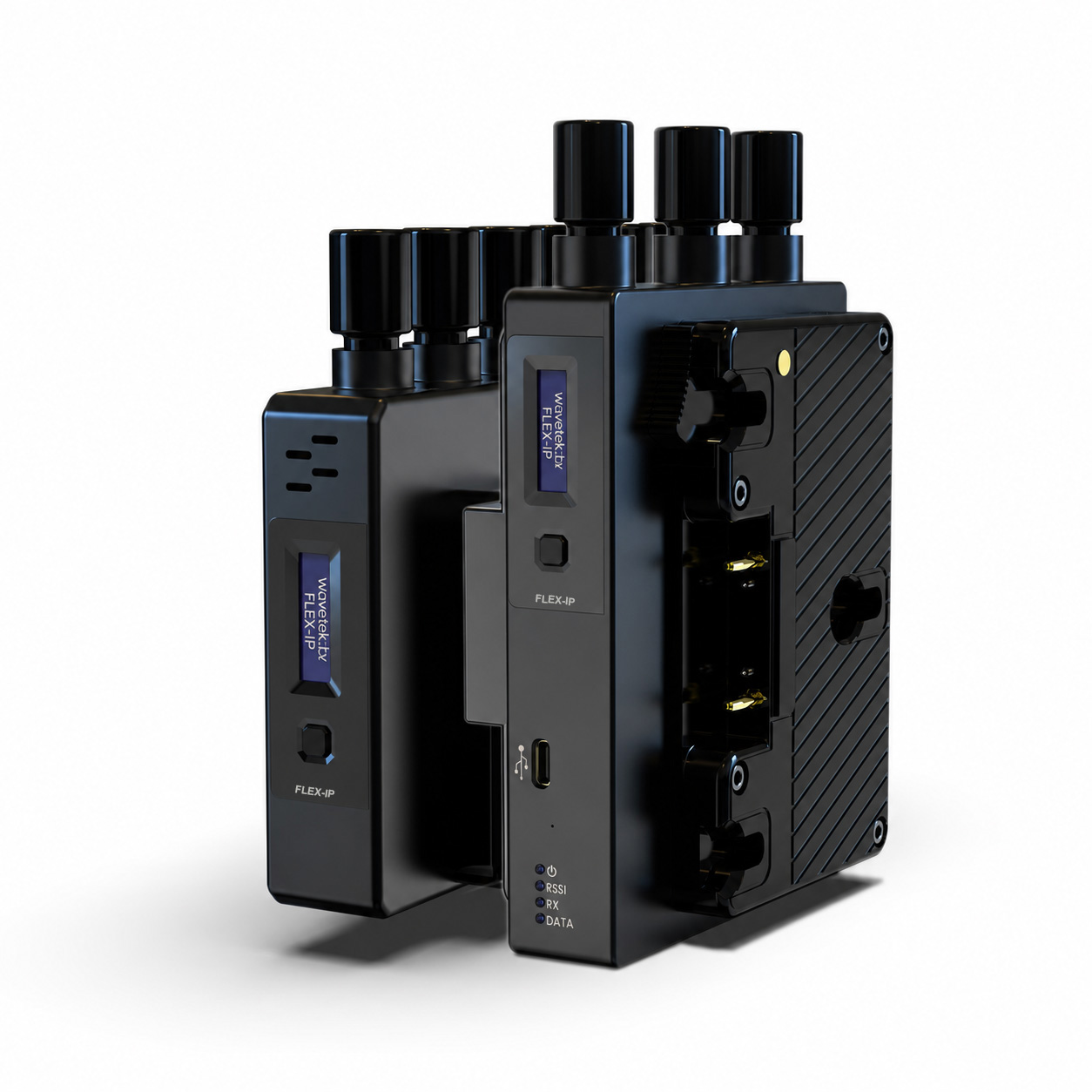

FLEX IP
Dual-band wireless video and IP data transmission system delivering under 1 ms latency and up to 150 Mbps data rate.
FLEX IP delivers seamless wireless video and IP-based data transmission for modern broadcast and media applications. Dual 5 GHz and 2.4 GHz operation provides robust performance in sports arenas, concert halls and other high-traffic environments while maintaining latency below 1 ms. Key features include ultra-low latency, dual-band wireless operation, data rates up to 150 Mbps, OLED displays and integrated IP connectivity.
Technical specifications
- Power Input
- 7.5–36 V
- Operating Temperature
- -5°C to +40°C
- Video Input
- HD-SDI loop and HDMI
- Video Output
- 2 × HD-SDI and HDMI
- Ethernet
- Dual 10/100Base-T Ethernet; 2 × LAN (RJ45)
- Serial Port
- RS232 / RS422
- Timecode / Trigger
- Supported
- Audio
- Embedded
- Dimensions
- 163 × 97 × 26 mm
- Antenna
- 6 × RP-SMA
- Weight
- 550 g
- Battery Plates
- V-Mount / Anton Bauer
- Dimensions
- 132 × 100 × 26 mm
- Antenna
- 3 × RP-SMA
- Weight
- 450 g
- Frequency
- 5.1–5.9 GHz / 2.4 GHz
- Latency
- Under 1 ms
- Modulation
- Advanced OFDM RF technology
- Range
- Up to 2,000 ft / 600 m line-of-sight
- Bandwidth
- 20 or 40 MHz selectable
- TX Power
- 11–30 dBm; 2.4 GHz link up to 23 dBm
- Data Encryption
- WEP, WPA-PSK, WPA2-PSK and WPA/WPA2-PSK
