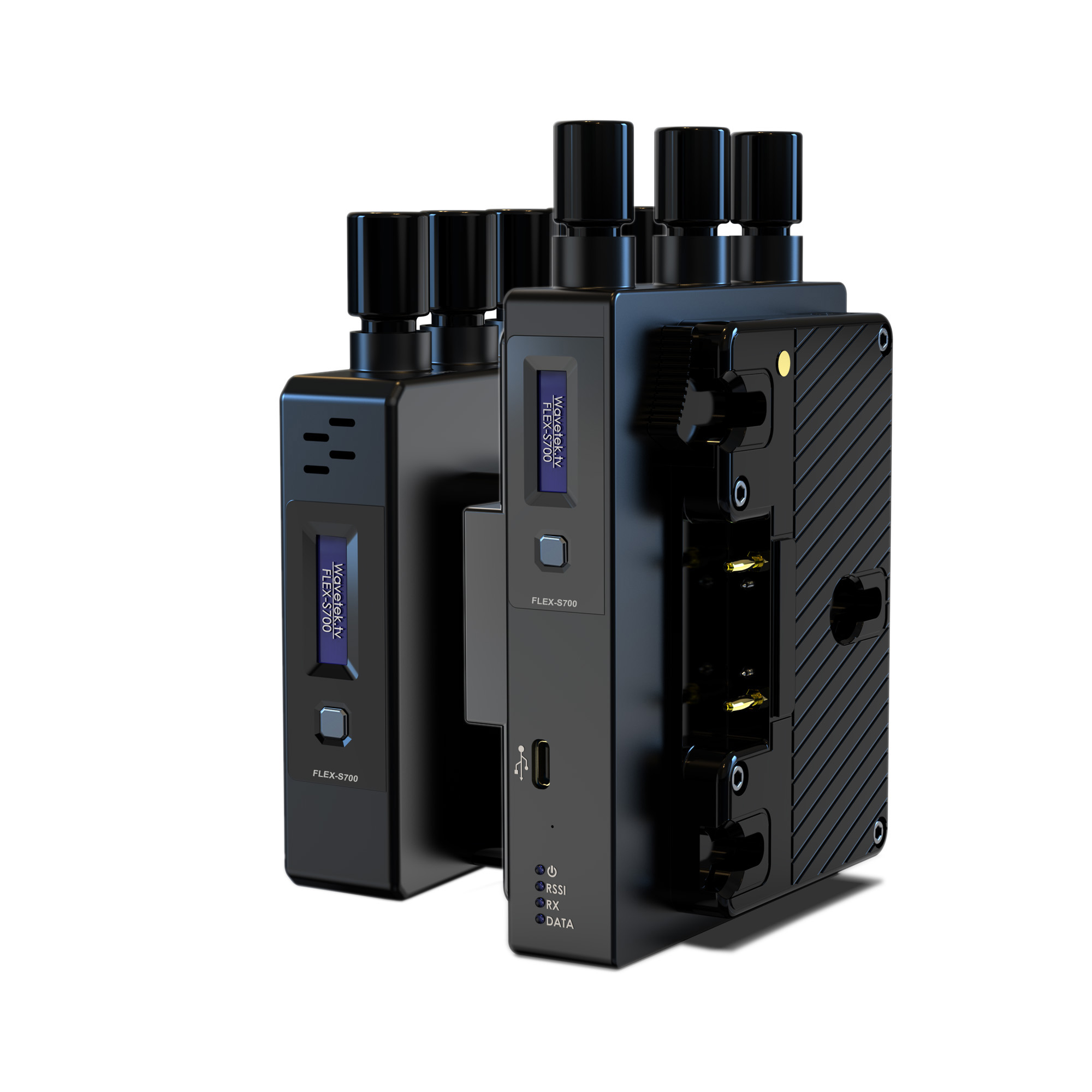

FLEX S700
Professional wireless video and Sony camera-control system with sub-millisecond latency and dual-frequency operation.
FLEX S700 combines reliable wireless video transmission with Sony legacy camera control for professional broadcast and live production. Designed for sports, ENG, concerts and live events, it supports 5 GHz video alongside 2.4 GHz or 900 MHz control links for flexible, dependable remote workflows. Key features include latency below 1 ms, dual-frequency wireless operation, frequency-hopping control, OLED displays and Sony legacy protocol support.
Technical specifications
- Power Input
- 7.5–36 V
- Operating Temperature
- -5°C to +40°C
- Video Input
- HD-SDI loop and HDMI
- Video Output
- 2 × HD-SDI and HDMI
- Control Interface
- Sony legacy camera control via RS422
- Record Trigger
- Supported
- Audio
- Embedded
- Dimensions
- 163 × 97 × 26 mm
- Antenna
- 6 × RP-SMA
- Weight
- 550 g
- Battery Plates
- V-Mount / Anton Bauer
- Dimensions
- 132 × 100 × 26 mm
- Antenna
- 3 × RP-SMA
- Weight
- 450 g
- Frequency
- 5.1–5.9 GHz and 2.4 GHz / 900 MHz
- Latency
- Under 1 ms
- Modulation
- Advanced OFDM RF technology
- Range
- Up to 2,000 ft / 600 m line-of-sight
- Video Bandwidth
- 40 MHz
- Control Bandwidth
- 25–400 kHz
- TX Power
- 11–30 dBm; control link up to 23 dBm
- Data Encryption
- 128-bit AES Encryption
