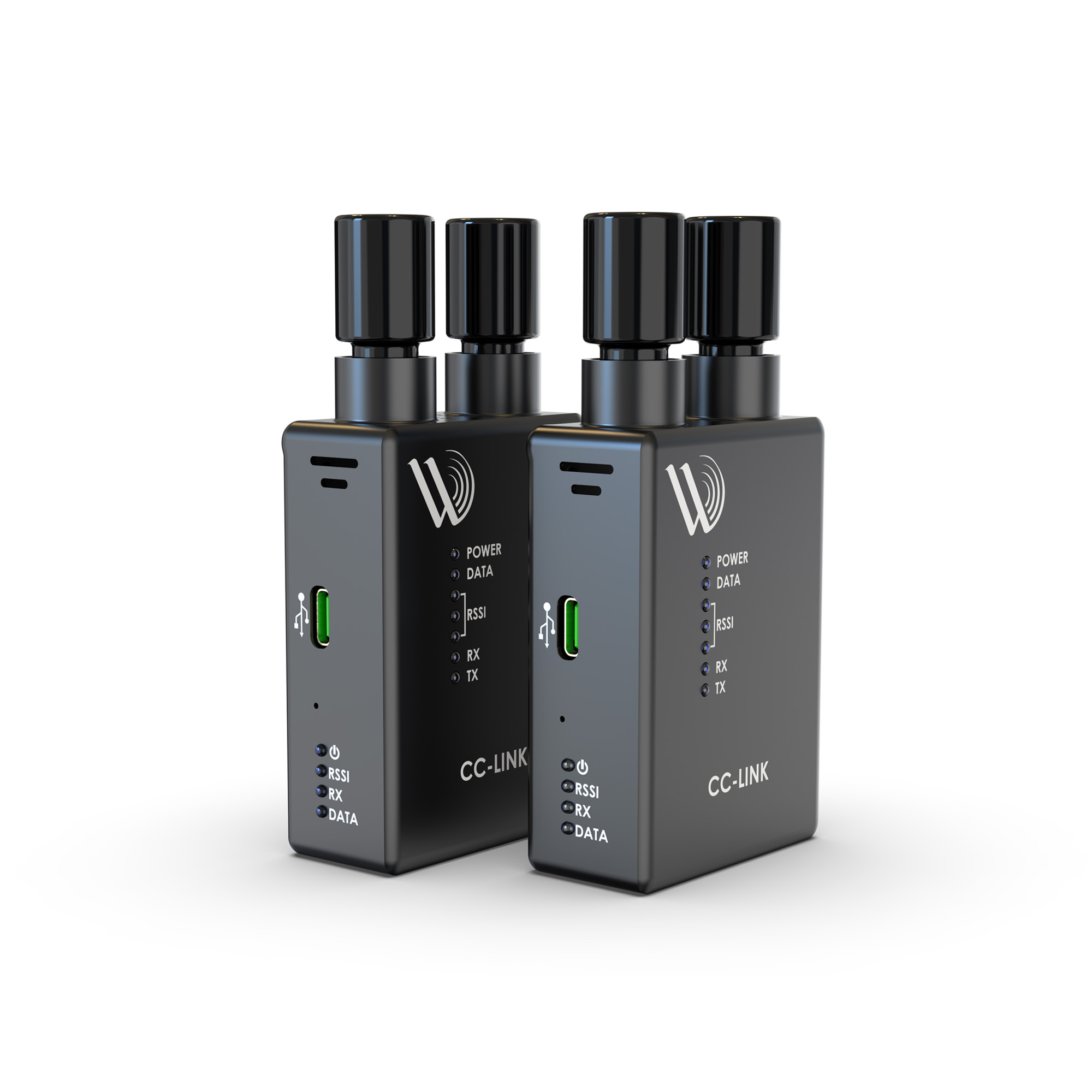

CC-LINK Combo
Combined wireless Sony camera control and IP data connectivity for modern broadcast workflows.
CC-LINK Combo combines reliable wireless Sony camera control with IP data connectivity. Operating in the 2.4 GHz band, it provides stable, low-latency communication between cameras and remote-control panels for studios, live productions, sports venues and large events. Key features include up to 150 Mbps throughput, low-latency control, Sony legacy camera-control support and standard RJ45 Ethernet connectivity.
Technical specifications
- Camera Control
- Sony legacy camera control / Sony 8-pin remote
- Ethernet
- Dual 10/100Base-T Ethernet, Auto-MDI/MDIX (IEEE 802.3)
- Input / Output
- Dual LAN (RJ45)
- Antenna
- 2 × RP-SMA
- Status Indicators
- Power / Data / RSSI / RX / TX LEDs
- Pairing
- Automatic link establishment
- Dimensions
- 70 × 50 × 20 mm
- Weight
- 80 g
- Supply Voltage
- 7.5–36 V
- Power Connector
- 2-pin LEMO
- Operating Temperature
- -5°C to +40°C
- Frequency
- 2.4 GHz
- Latency
- Typically under 10 ms for control link
- Modulation
- OFDM (802.11 b/g/n)
- Range
- Up to 2 km line-of-sight
- Bandwidth
- 20 / 40 MHz
- TX Power
- Up to 30 dBm
- Data Encryption
- WPA2 Security
