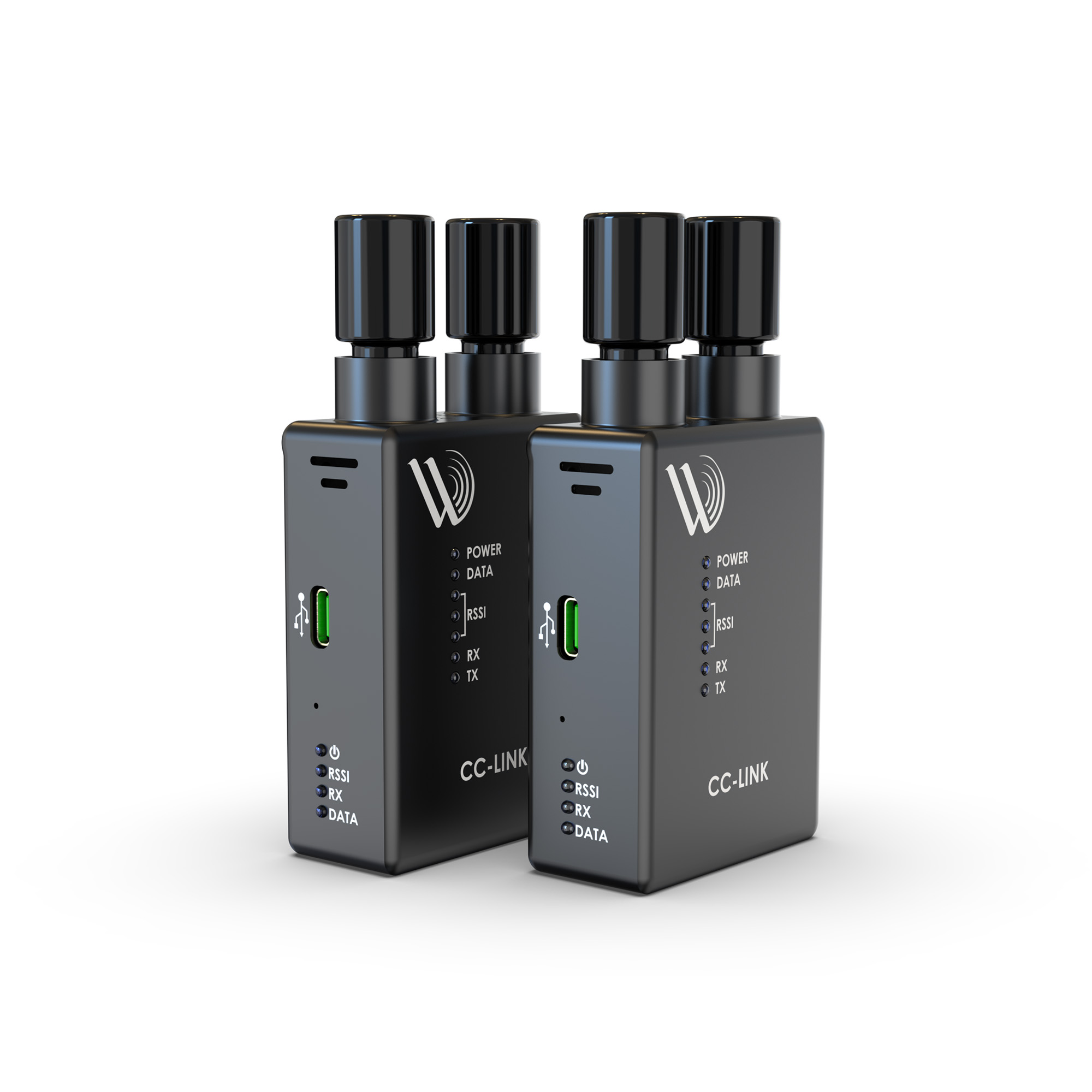

CC-LINK IP
Wireless IP camera-control and broadcast connectivity system with dual Ethernet interfaces and up to 2 km line-of-sight range.
The CC-LINK IP system provides reliable wireless IP connectivity for professional broadcast and production applications. Operating in the 2.4 GHz band, it delivers stable, low-latency communication between cameras, control panels and network devices. Support for IP camera control, metadata transport and network communications simplifies deployments across studios, live productions and broadcast environments. Key features include up to 150 Mbps data throughput, low-latency IP connectivity, dual Ethernet interfaces and IP-based camera control.
Technical specifications
- Control Protocol
- IP-based control
- Serial Port
- RS232 / RS422
- Ethernet
- Dual 10/100Base-T Ethernet, Auto-MDI/MDIX (IEEE 802.3)
- Antenna
- 2 × RP-SMA
- Status Indicators
- Power / RSSI / RX / TX
- Pairing
- Automatic link establishment
- Dimensions
- 70 × 50 × 20 mm
- Weight
- 80 g
- Supply Voltage
- 7.5–36 V
- Power Connector
- 2-pin LEMO
- Operating Temperature
- -5°C to +40°C
- Frequency
- 2.4 GHz
- Latency
- Typically under 10 ms
- Modulation
- OFDM (802.11 b/g/n)
- Range
- Up to 2 km line-of-sight
- Bandwidth
- 20 / 40 MHz
- TX Power
- Up to 30 dBm
- Data Encryption
- WPA2 Security
