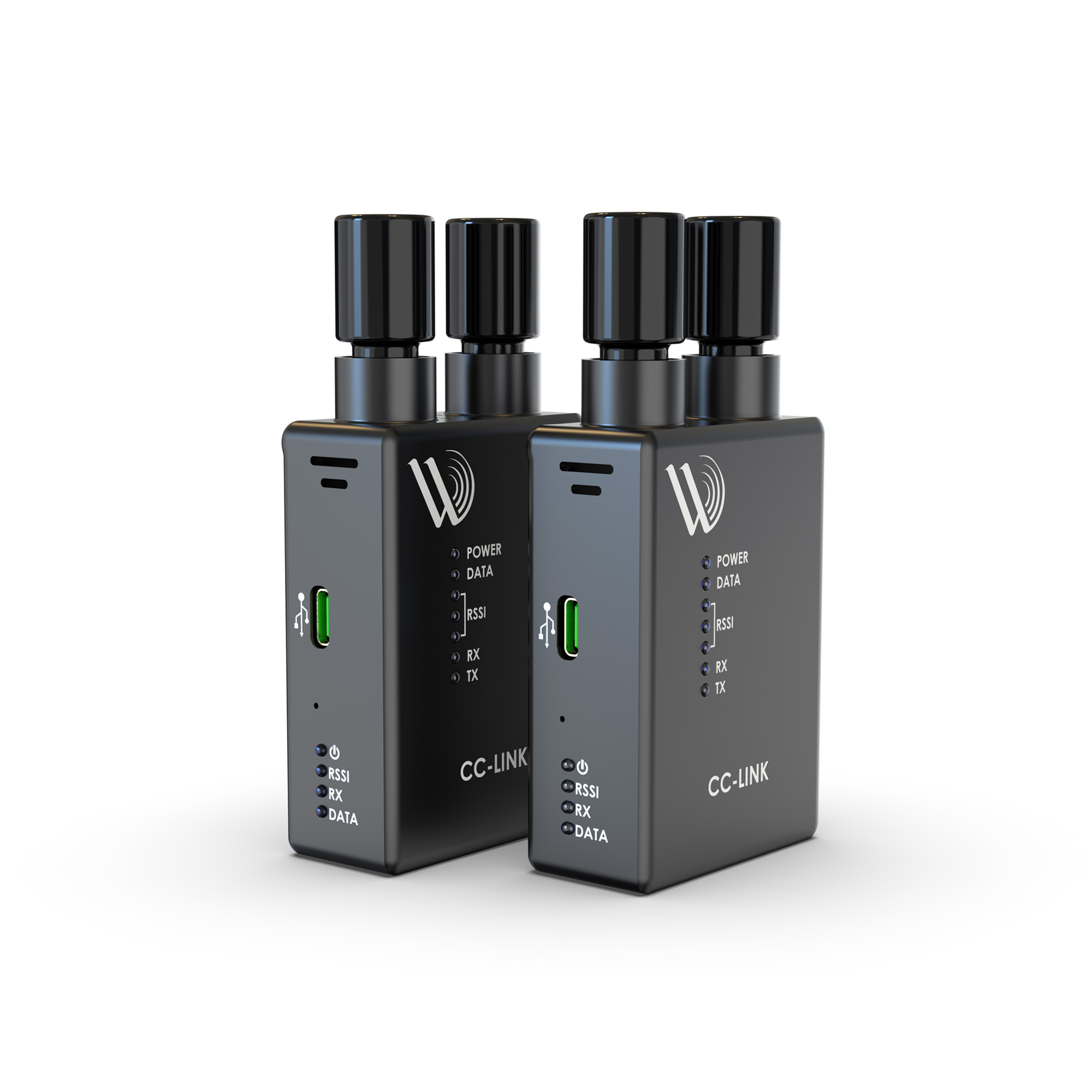

CC-LINK S700
Wireless Sony camera-control system supporting the full Sony 700 protocol with 900 MHz and 2.4 GHz variants.
CC-LINK S700 is designed for professional Sony camera-control workflows, providing dependable wireless communication between cameras and Sony RCP control panels. It supports the full range of Sony RCP functions, including remote shading and camera operation, and is compatible with RCP-1500 and RCP-3500 series controllers. Key features include full Sony 700 protocol compatibility, low-latency control, 900 MHz and 2.4 GHz options, plug-and-play installation and AES-encrypted communication.
Technical specifications
- Protocol
- Sony 700 protocol
- RCP Compatibility
- Sony RCP-1500 / RCP-3500 series
- Camera Interface
- 6-pin LEMO / RJ45
- RCP Interface
- Sony 8-pin remote
- Pairing
- Automatic link establishment
- Dimensions
- 70 × 50 × 20 mm
- Weight
- 80 g
- Antenna
- 2 × RP-SMA
- Supply Voltage
- 7.5–36 V
- Power Connector
- 2-pin LEMO
- Operating Temperature
- -5°C to +40°C
- Frequency
- 2.4 GHz / 900 MHz
- Latency
- Typically under 10 ms
- Modulation
- FHSS (Frequency Hopping Spread Spectrum)
- Range
- Up to 1 km line-of-sight
- TX Power
- Up to 30 dBm
- Data Encryption
- AES Encryption
