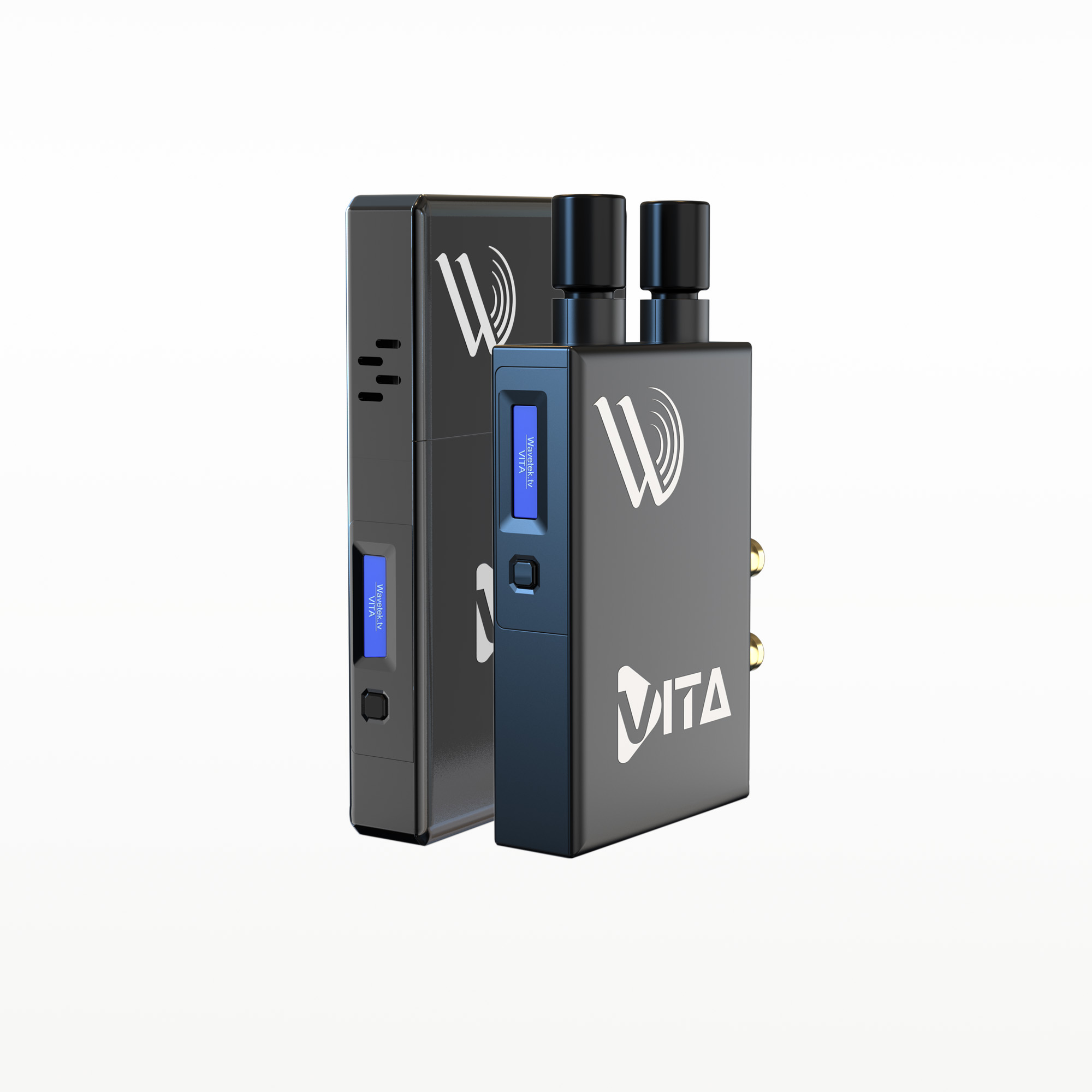

VITA Lite System
Compact complete wireless video system with HDMI/HD-SDI, embedded audio, metadata and up to 200 m range.
VITA Lite is a complete ultra-low-latency wireless video system for professional broadcast and live production. It operates in the 5 GHz band and supports HDMI and HD-SDI transmission, embedded audio, metadata and record-trigger functionality. Integrated OLED displays simplify field configuration, while the compact receiver uses internal antennas. The system delivers latency below 1 ms and up to 600 ft / 200 m line-of-sight range.
Technical specifications
- Supply Voltage
- 7.5–36 V
- Operating Temperature
- -5°C to +40°C
- Transmitter Video
- HD-SDI loop
- Receiver Video
- 1 × HD-SDI output and HDMI
- Timecode / Trigger
- Supported
- Audio
- Embedded
- Display
- OLED status and configuration display
- Dimensions
- 150 × 92 × 23 mm
- Antenna
- Internal
- Weight
- 240 g
- Dimensions
- 105 × 70 × 23 mm
- Antenna
- 2 × RP-SMA
- Weight
- 260 g
- Frequency
- 5.1–5.9 GHz
- Latency
- Under 1 ms
- Modulation
- Advanced OFDM RF technology
- Range
- Up to 600 ft / 200 m line-of-sight
- Bandwidth
- 40 MHz
- TX Power
- 23 dBm
