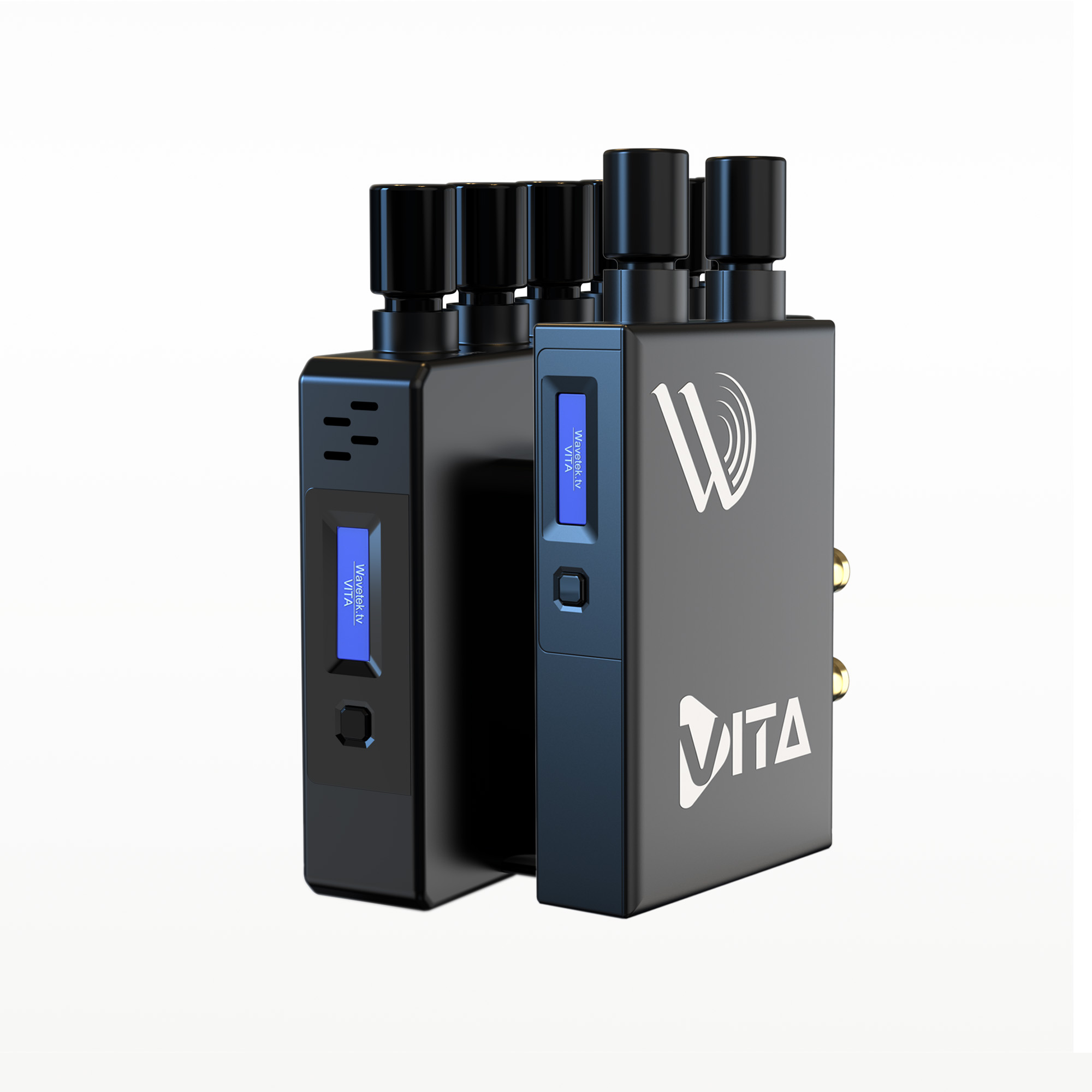

VITA PRO System
Professional long-range 5 GHz wireless video system with sub-millisecond latency and up to 600 m range.
VITA PRO delivers dependable wireless video transmission for professional broadcast and live production. The 5 GHz platform combines robust RF performance with latency below 1 ms. Its transmitter provides HD-SDI loop output, HDMI input, embedded audio, metadata and record-trigger support; the multi-antenna receiver provides extended range with HD-SDI and HDMI outputs. Integrated OLED displays enable simple monitoring and rapid field configuration.
Technical specifications
- Supply Voltage
- 7.5–36 V
- Operating Temperature
- -5°C to +40°C
- Transmitter Video
- HD-SDI loop / HDMI input
- Receiver Video
- 2 × HD-SDI output / HDMI
- Timecode / Trigger
- Supported
- Audio
- Embedded
- Display
- OLED status and configuration display
- Dimensions
- 163 × 97 × 26 mm
- Antenna
- 6 × RP-SMA
- Weight
- 550 g
- Battery Plates
- V-Lock / Anton Bauer
- Dimensions
- 124 × 76 × 24 mm
- Antenna
- 2 × RP-SMA
- Weight
- 260 g
- Frequency
- 5.1–5.9 GHz
- Latency
- Under 1 ms
- Modulation
- Advanced OFDM RF technology
- Range
- Up to 2,000 ft / 600 m line-of-sight
- Bandwidth
- 40 MHz
- TX Power
- 23 dBm
