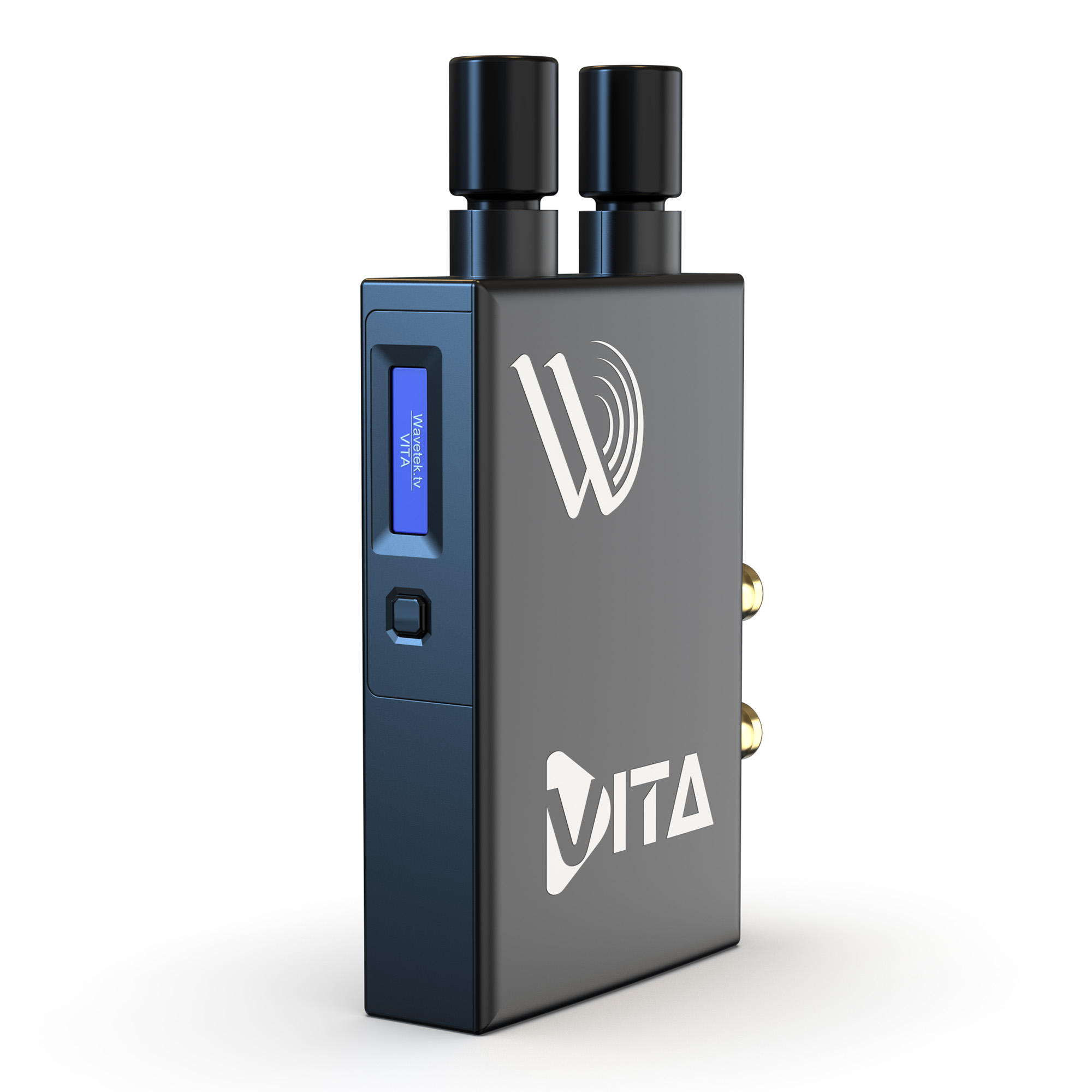

VITA Transmitter
Compact 5 GHz broadcast wireless video transmitter with HD-SDI loop output and sub-millisecond latency.
The VITA Transmitter provides reliable wireless video transmission for professional broadcast and live production. Operating in the 5 GHz band, it delivers robust RF performance and latency below 1 ms. The transmitter includes an HD-SDI loop output, embedded audio, metadata and record-trigger support, plus an OLED display for rapid field configuration. It is designed for mission-critical workflows requiring a compact, lightweight transmitter.
Technical specifications
- Video Input / Output
- HD-SDI loop
- Timecode / Trigger
- Supported
- Audio
- Embedded
- Display
- OLED status and configuration display
- Dimensions
- 105 × 70 × 23 mm
- Antenna
- 2 × RP-SMA
- Weight
- 260 g
- Supply Voltage
- 7.5–36 V
- Operating Temperature
- -5°C to +40°C
- Frequency
- 5.1–5.9 GHz
- Latency
- Under 1 ms
- Modulation
- OFDM
- Bandwidth
- 40 MHz
- TX Power
- 23 dBm
